Precision Meets Performance: Discover Our Expert-Tested Milling Machines
Step into the future of digital dentistry with our cutting-edge Milling Machines. At Level UP CAD/CAM, we're dedicated to ensuring your journey through digital dentistry is marked by confidence and success. Here's why our machines stand out:
-
Every machine undergoes rigorous testing and validation by CAM (Computer-Aided Manufacturing) experts. We leave no stone unturned in ensuring top-notch performance and continuously strive for enhancements, so you can trust in the quality and reliability of our products.
-
Your success is our priority. We don't just sell machines; we provide milling solutions tailored to meet your needs. From initial setup to ongoing support, we're with you every step of the way, ensuring seamless integration and maximum efficiency.
-
Our milling machines seamlessly integrate with Millbox software, unlocking a world of possibilities and streamlining your workflow. Say goodbye to compatibility issues and hello to enhanced efficiency and productivity.
Unveil the power of precision with our collection of reliable milling machines, selected and tested by our CAM and milling specialists. As your partners in digital dentistry, we are committed to your success and excellence.
X-Mill 650 SE
X-Mill 500 Plus 5-axis Dry Milling Machine
Experience Unmatched Precision, Unyielding Stability, and Unwavering Reliability—all Wrapped in an Affordable Package!
Discover the Power of X-Mill 500+
Precision Engineering, Desktop Convenience: Experience the prowess of heavy-duty and high-precision machining in a compact desktop form. Say goodbye to cumbersome setups and hello to effortless maintenance.
Built to Last: Weighing a robust 435lbs and fortified with a sturdy steel base, the X-Mill 500+ is engineered for durability. Its solid construction ensures reliable performance, allowing for efficient cuts while retaining pinpoint accuracy over time.
Consistent Precision, Every Time: Achieve unparalleled precision with results accurate down to 3um (microns). The X-Mill 500+ delivers consistent, repeatable outcomes, bringing your Dental CAD designs to life with minimal post-processing required.
Technical Specifications:
Dimension: 630 X 730 X 700 (mm)
24.9" x 28.8" x 27.6"
Net weight: 197 kg (435 lbs)
lnput voltage: AC 220V
Spindle power: 1.8 kw Liquid-Cooled
Number of Axes: 5
Milling range: XYZ: 110/160/80MM A:+30° B: 360°
Milling mode: Dry Milling
Max Spindle RPM: 60,000 rpm
Max Feed Rate: 6000 mm/min
Automatic Tool Changer: 8 Slots
Materials: Zirconia, Wax, PMMA, PEEK, Soft metal

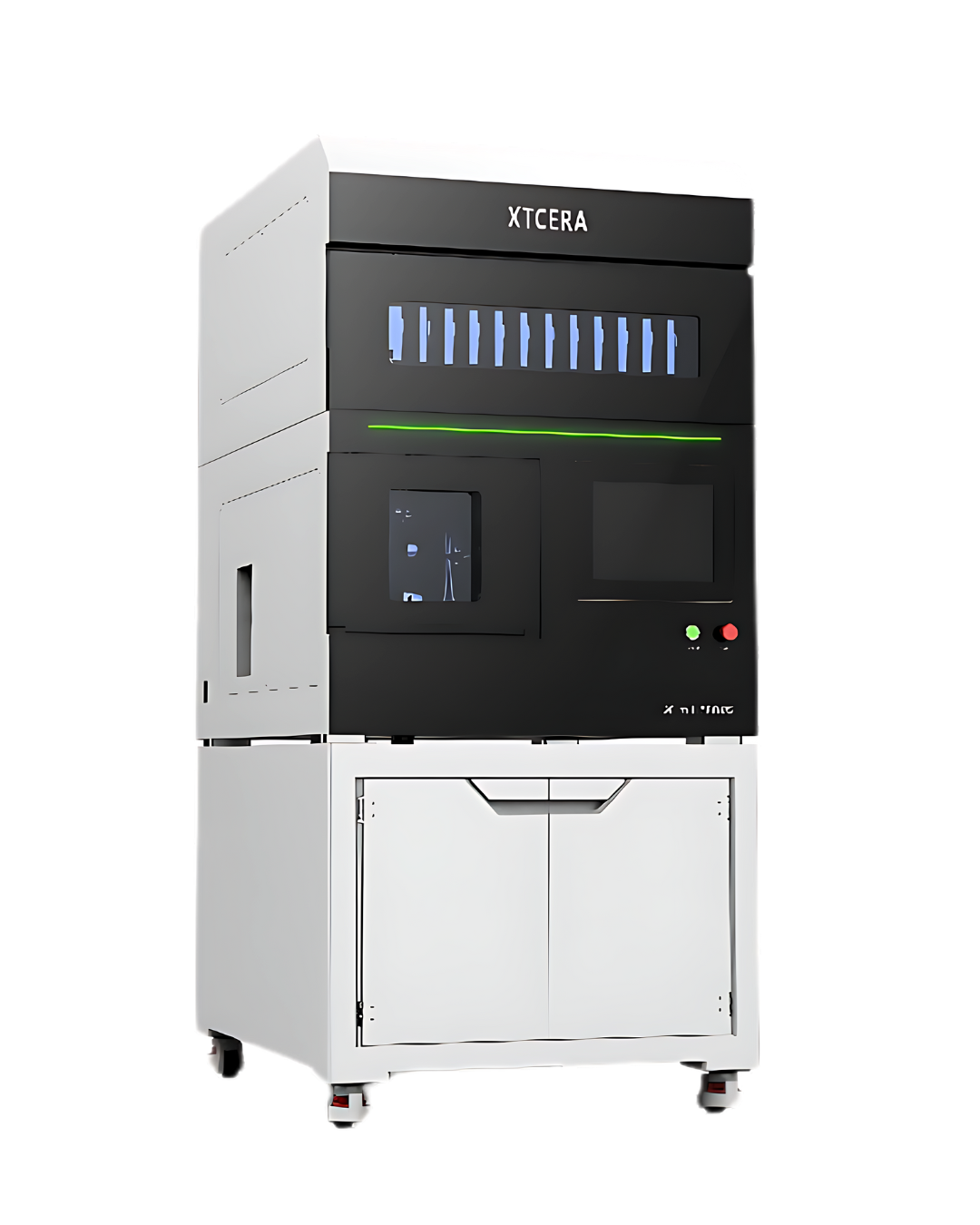

X-Mill 580DC 5-axis Dry Mill with Automatic Disc Changer
Unlock Unparalleled Performance and Repeatability!
Experience 24-hour performance milling with the 580DC's 12-disc automatic disc changer.
Upgrade your production to run lights-out or unattended operations between shifts!
Key Features:
24-hour Machining: The Intelligent Automatic 12-Disc Changer enables 24 hour milling capability - maximizing your return on investment.
Advanced Dust Containment: Our latest model boasts an upgraded sealed milling chamber, ensuring superior dust containment compared to previous generations.
Precision Engineering: Equipped with high-accuracy servo motors, our machine delivers machining tolerances as fine as 3um (microns), guaranteeing exceptional precision in every job.
True 90 Degree Milling: An open-faced C-Clamp Fixture Design allows for unparralleled facial detailed milling for restorations.
Versatile Capability & Material Compatibility: Seamlessly mill a wide range of dental restorations across various materials, including Zirconia, Wax, PMMA, Composites, and Soft Metals, enabling efficient machining for diverse applications.
Safety Features: Automatic door sensors ensure safety by initiating and halting machine operations, preventing potential hazards. The machine can resume machining automatically after any interruption, ensuring uninterrupted workflow.
Technical Specifications:
Dimension: LxWxH 950 X 750 X 1750 (mm)
37.5" x 29.6" x 68.9"
Net weight: 360 kg (794 lbs)
lnput voltage: AC 220V
Spindle power: 1.8 kw Liquid-Cooled
Number of Axes: 5
Milling range: XYZ: 160/100/90MM A:+30° B: 360°
Milling mode: Dry Milling
Max Spindle RPM: 60,000 rpm
Max Feed Rate: 6000 mm/min
Automatic Tool Changer: 10 Slots
Automatic Disc Changer: 12 Disc Capacity
Materials: Zirconia, Wax, PMMA, PEEK
X-Mill 300 Milling Machine Compact 4-Axis Wet Milling
Small Footprint. Serious Capabilities.
Designed for dental professionals who need power in a tight space, the XTCERA 300 Milling Machine delivers reliable 4-axis wet milling in a compact and durable frame. Whether you're working with glass ceramic, PMMA, or composite resin, this high-powered solution processes materials with speed and accuracy.
Its air-driven industrial spindle, 6-slot automatic tool changer, and harmonic A-axis drive ensure precision across every job—even when milling pre-milled titanium abutments.
Technical Specifications:
Dimension: 730 × 720 × 620 (mm)
28.74" x 28.35" x 24.41"Net weight: 170 kg (375 lbs)
Input voltage: AC 220V
Spindle power: 1.8 kW Air-Driven
Number of Axes: 4
Milling range: XYZ: 125/130/80 mm A: 360° (±20° positioning processing)
Milling mode: Wet Milling
Max Spindle RPM: 60,000 rpm
Max Feed Rate: 6000 mm/min
Automatic Tool Changer: 6 Slots
Materials: Glass Ceramic, Composite Resin, PMMA, Pre-milled Abutment
Key Features:
Compact yet powerful, the X-Mill 300 is a 4-axis wet milling machine built for chairside setups or small lab environments. It supports full 360° A-axis rotation with harmonic drive and ±20° positioning precision. With a 1.8 kW air-driven spindle and 6-slot automatic tool changer, it delivers consistent performance for everyday production. The machine supports up to 8 glass ceramic blocks at once and offers ±3 μm repeatability. Ideal for wet milling of glass ceramic, composite resin, PMMA, and pre-milled abutments.
X-Mill XTCERA 630 Milling Center Advanced 5-Axis Wet Milling
Built for Performance. Engineered for Accuracy. Designed for You.
The XTCERA 630 Milling Center delivers power, flexibility, and accuracy in a compact, cast-iron frame that ensures vibration-free, long-lasting performance. With automatic bur exchange, real-time monitoring, and intelligent calibration, this unit is built for labs ready to scale their output without compromising on precision.
Whether you're processing abutments, implant poles, or complex multi-material restorations, the 630 makes high-speed, accurate wet milling a daily standard.
Technical Specifications:
Dimension: 800 × 650 × 1750 (mm)
31.50" x 25.59" x 68.90"Net weight: 450 kg (992 lbs)
Input voltage: AC 220V
Spindle power: 2.5 kW Air-Driven
Number of Axes: 5
Milling range: XYZ: 240/180/140 mm A: 360° B: ±30°
Milling mode: Wet Milling
Max Spindle RPM: 60,000 rpm
Max Feed Rate: 6000 mm/min
Automatic Tool Changer: 24 Slots
Materials: Glass Ceramic, Titanium, Pre-milled Abutments
Key Features:
The XTCERA 630 is a 5-axis wet milling machine built with a cast iron body for long-term structural stability and reduced vibration. It features ±30° B-axis deflection, automatic calibration for precision milling, and a 24-slot automatic tool changer to support efficient, continuous workflows. Real-time monitoring of tool wear and tool life helps maintain consistent quality, while its ±2 μm repeat positioning accuracy ensures exceptional results. Designed for versatility, it handles glass ceramic, titanium, and pre-milled abutments—making it ideal for producing advanced restorations such as implant bars, customized abutments, and Malo bridges.
X-Mill 650 SE Milling Center High-Capacity 5-Axis Wet Milling
Power Meets Precision for Industrial-Scale Output
With a rigid 1000 kg titanium column base and compatibility with both round and square blanks, the XTCERA 650 SE is built for high-volume dental manufacturing. Its 36-slot automatic tool changer, ±40° B-axis tilt, and 4 kW air-driven spindle allow it to take on complex restorations with ease. From full-contour crowns to implant bars, this wet milling powerhouse delivers precise, uninterrupted results across a wide range of indications.
Technical Specifications:
Dimension: 1170 × 820 × 1830 (mm)
46.06" x 32.28" x 72.05"Net weight: 1000 kg (2204 lbs)
Input voltage: AC 220V
Spindle power: 4 kW Air-Driven
Number of Axes: 5
Milling range: XYZ: 340/160/180 mm A: 360° B: ±40°
Milling mode: Wet Milling
Max Spindle RPM: 60,000 rpm
Max Feed Rate: 6000 mm/min
Automatic Tool Changer: 36 Slots
Materials: Titanium, Chrome Cobalt (CrCo), Pre-milled Abutment, Resin, PEEK (Square Blanks 140 × 150 mm, Round Blanks 98 mm)
Key Features:
Engineered for heavy-duty milling, the X-Mill 650 SE features 5-axis simultaneous motion, ±40° B-axis deflection, and real-time monitoring of tool life and wear. The machine’s automatic tool changer holds up to 36 tools for continuous operation, while its titanium base ensures exceptional rigidity. With support for round (98 mm) and square (140 × 150 mm) blanks, the unit handles high-production milling of materials like titanium, Chrome Cobalt, PEEK, resin, and pre-milled abutments. Its ±2 μm repeat accuracy and 60,000 rpm spindle speed make it ideal for delivering full-arch implant bars, crowns, and custom abutments with minimal post-processing.
